FIXONLASER
Handheld Laser Cleaning Solution
High-Precision Series

Handheld Laser Cleaning Solution

1070±20 nm

Technical Specifications

Laser Wavelength 1070±20 nm
Cooling Method Water cooling

Product Details

Our 3000W and 6000W handheld laser cleaners deliver high-efficiency, non-contact cleaning that strips rust, paint, grime, stains, coatings, and oil with precision. No chemicals, no abrasion—just clean, fast, and eco-friendly results. Designed for continuous, hassle-free operation across multiple industries, boosting productivity while cutting costs.

Fast and versatile cleaning, built for the real world:

High efficiency: Instantly strips rust, coatings, grease, and debris from metal, plastic, and ceramic—quick in, quick out.
Broad compatibility: One tool for many jobs. Handles diverse materials and contaminants with ease, ideal for both industrial tasks and precision work.

Non-contact by design:

Protects surfaces: No abrasion, no deformation—say goodbye to wear from traditional methods.
Delicate-friendly: Tailor‑made for precision parts and sensitive surfaces that demand extra care.

Eco-friendly innovation that pays off:

Chemical-free: No solvents, no wastewater—cleaner results with a smaller footprint.
Energy-smart: Consumes far less energy than conventional techniques, cutting operating costs while supporting sustainability.

Parameter

Fiber interface QBH
Collimation focal length 75mm
Focus focal length 1500mm
Scanning width 200~500mm
Scanning speed 40000mm/s
Auxiliary pressure 20.5~0.8Mpa
Effective clear aperture φ20
Cooling Water cooling

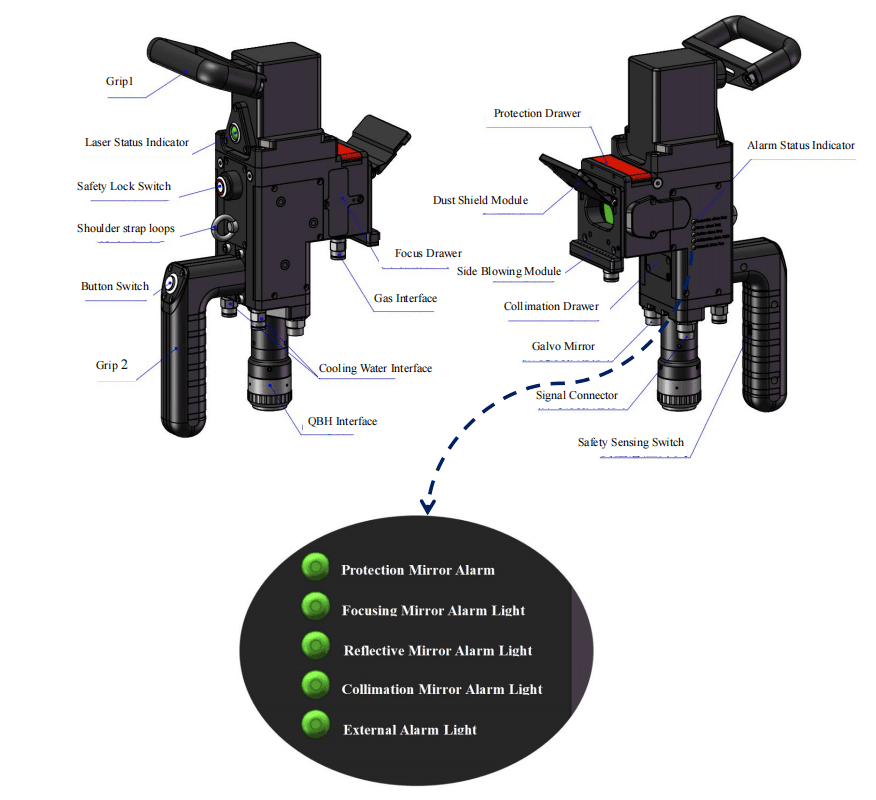

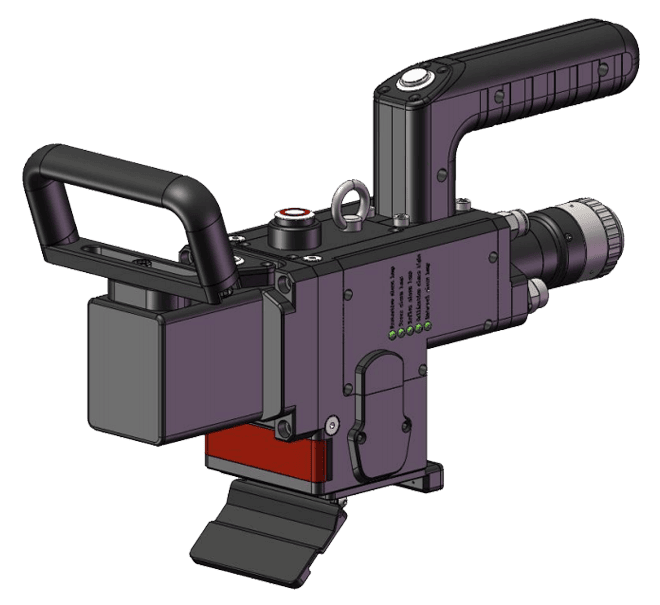

Cleaning Head Product structure

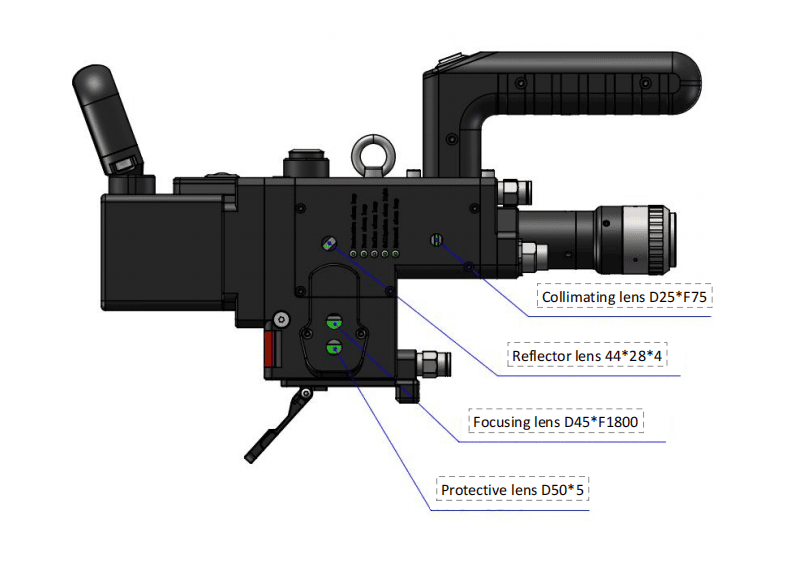

Structure of optics lens

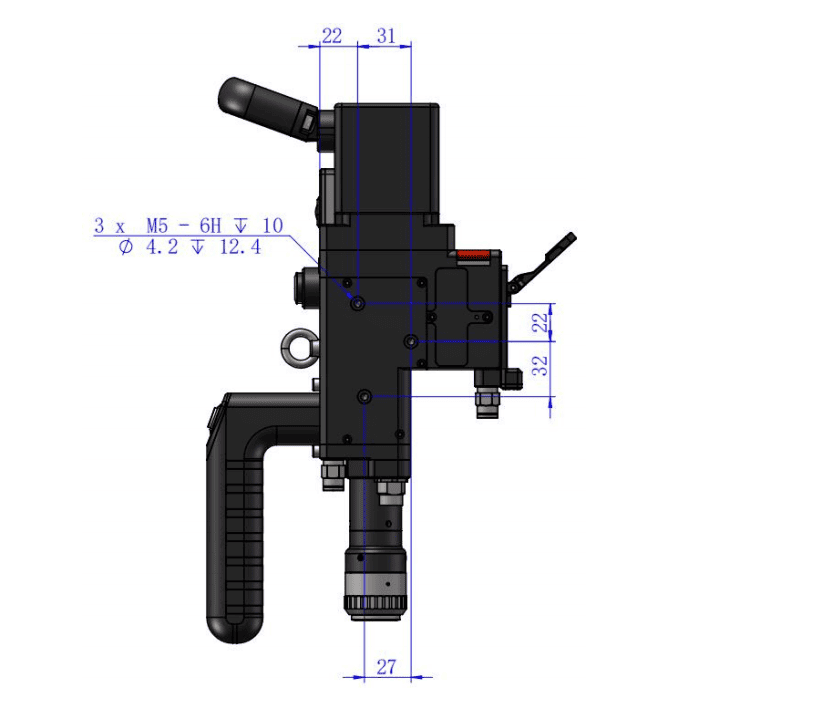

Mounting dimension
