Product Description
The Fixon handheld laser welder is a new-generation welding solution built
with a premium Raycus fiber laser source. It features an all-in-one integrated
design—sleek appearance, stable performance, easy installation, simple
operation, and high safety.
Key advantages: ultra-fast welding speed, high efficiency, excellent weld
appearance, minimal consumables, long service life, and eco-friendly
operation.
Wide applications: kitchenware, doors and window railings, staircases and
elevators, stainless-steel furniture, hardware sheet metal, signage, crafts and
gifts, auto repair and manufacturing, rail transit, and aerospace welding.
Standard Wire Feeder + Cobots Ready
Comes standard with a wire feeder, which relaxes gap-fit requirements
and further improves weld quality.
Can be paired with a collaborative robot by fixing the welding torch on the
cobot arm—reducing operator workload and improving seam consistency
and overall weld quality
Parameter
| Model No. | HLY-HW1500/HLY-HW2000/HLY-HW3000 |
| Laser wavelength | 1080±5 nm |
| Operating Mode | Continuous / Modulation |
| Power adjustment range | 10 ~ 100% |
| Aim and position | Red light |
| Fiber length | 10 m |
| Auxiliary pressure | ≥0.5～0.8Mpa |
| Wire Feeder | Standard configuration Wire feed speed: 38–600 mm/min |
| Wire feed diameter | 0.8/1.0/1.2/1.6/2.0mm |
| Cooling | Water cooling |
| Work Environment | 10–40°C, humidity 10–85%, no condensation |
| Rated Power | 4KW;6KW;8KW |

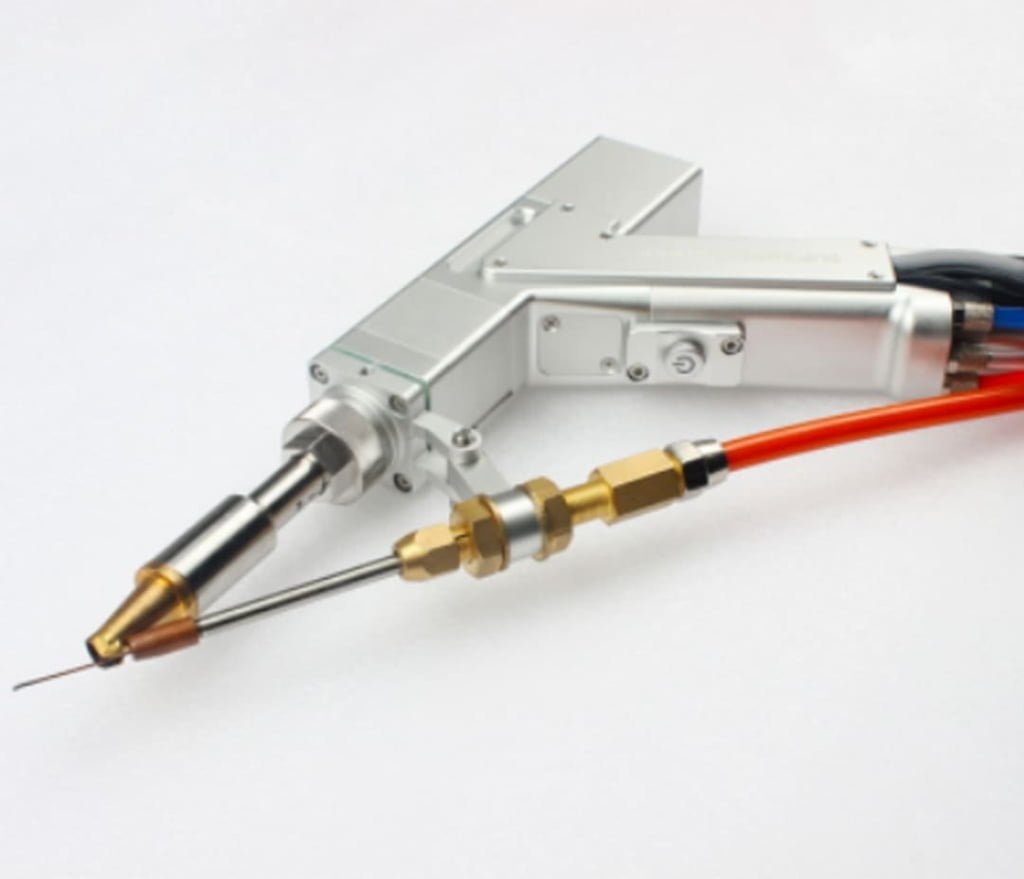

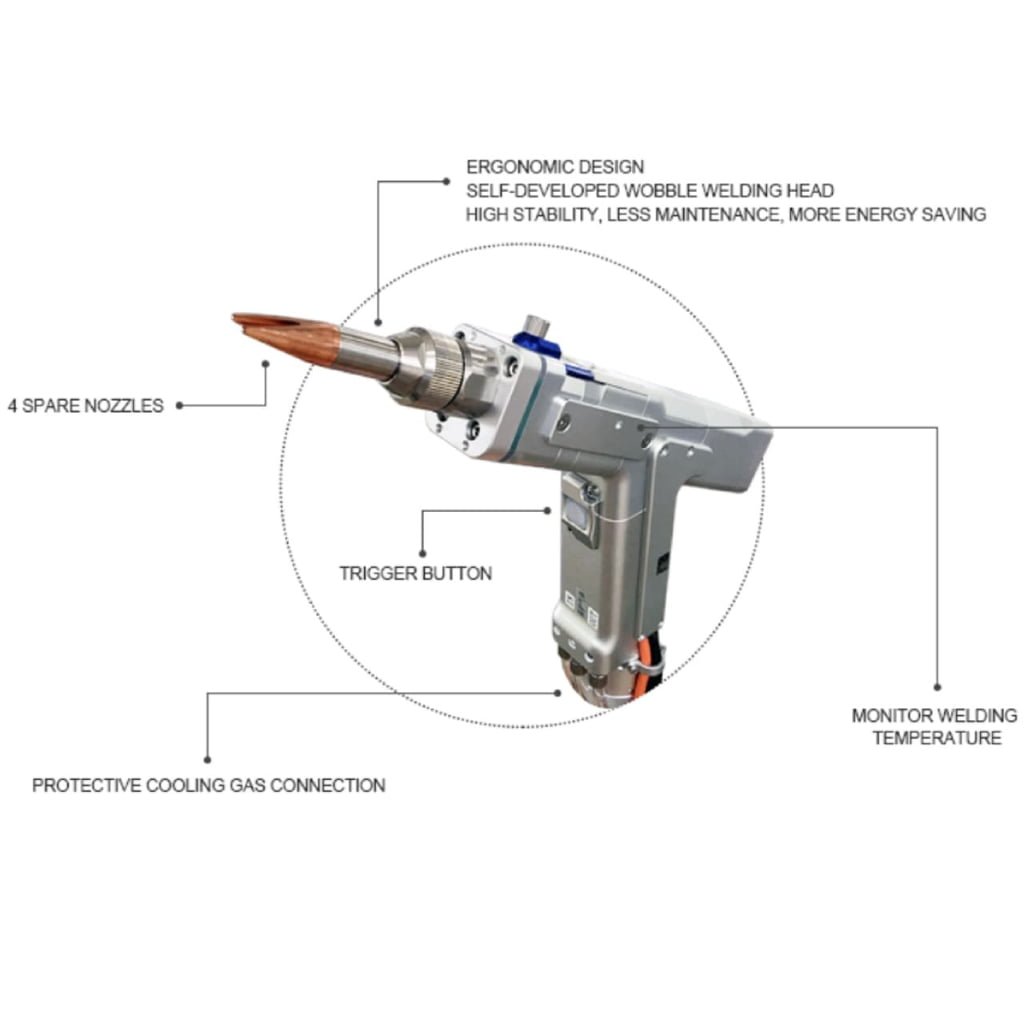

Handheld laser head
Laser welding heads are widely used in complex and
irregular welding processes across industries such as
staircases and elevators, shelving, ovens, stainless steel
doors, windows, and railings, electrical distribution
boxes, and stainless steel furniture. They perfectly
replace traditional TIG welding for joining metal
materials including stainless steel plates, iron plates,
and aluminum plates.

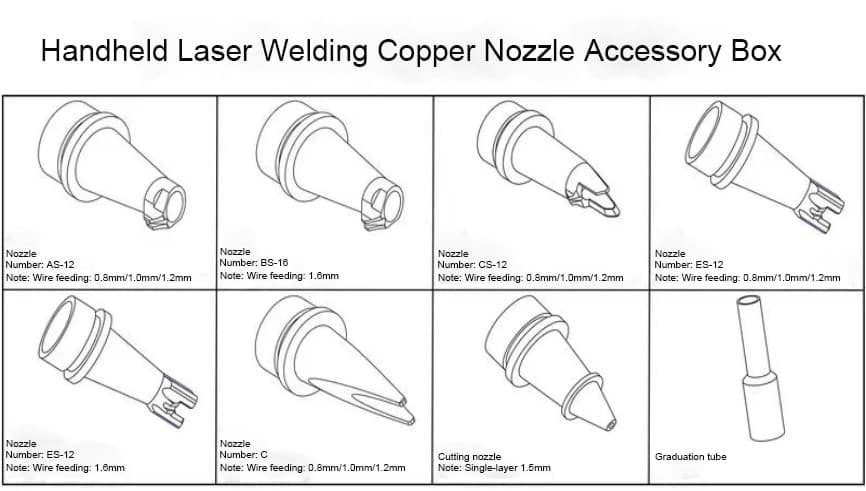

Laser Welding Nozzle

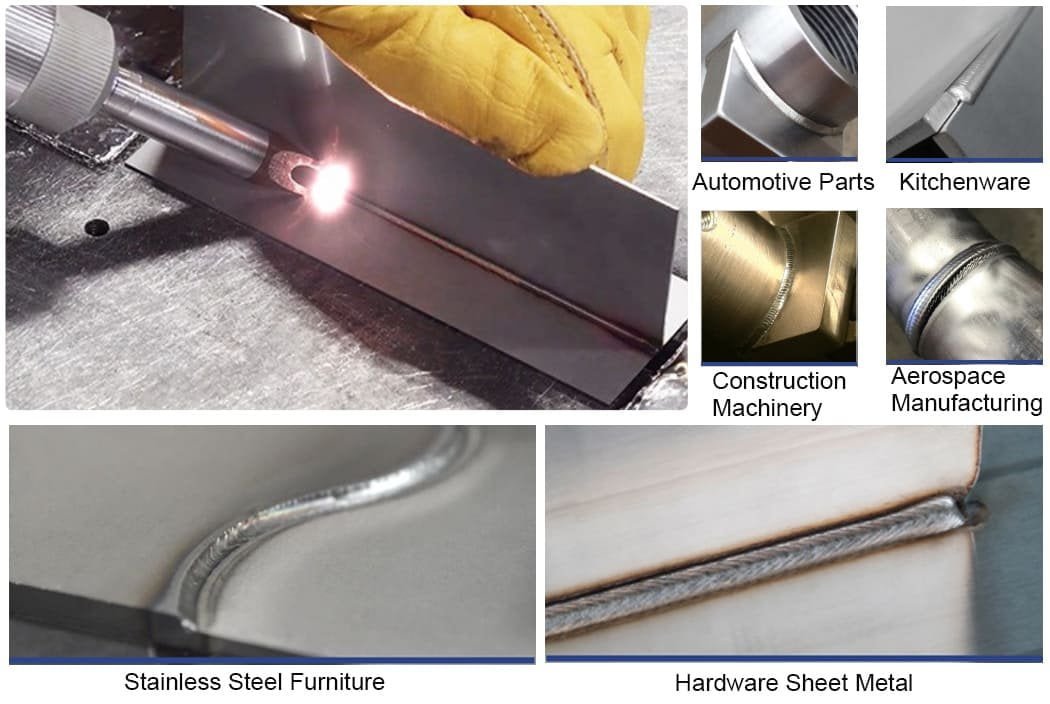

Welding samples
