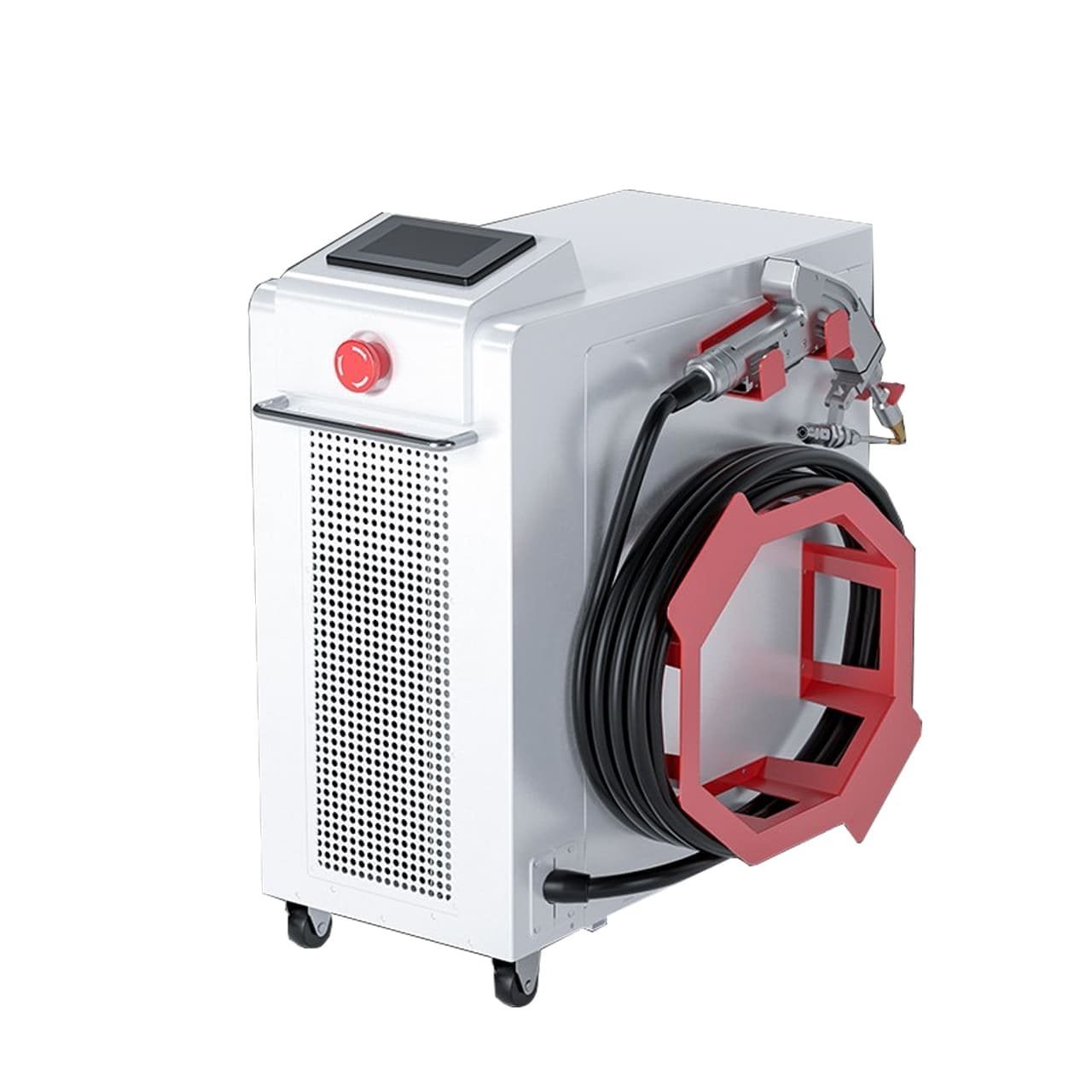

Fixon’s self-developed, air-cooled handheld laser welder is built end-to-end in house: our proprietary welding head paired with a versatile, multi-mode welding system. The standout is our original air-cooled 915 nm architectue—energy-efficient, power-saving, and rock solid in the field. A 14 μm delivery fiber ensures a crisp, high-quality spot and higher power density where it matters. With a multi-layer anti-back- reflection design, it handles high- reflectivity materials like aluminum alloys and stainless steel with ease.
Product Description
Parameter
| Model No. | HLY-CA1000/HLY-CA1500 |
| Operating Temperature Range | -15~40°C |
| Operating Humidity Range | <80% dew-free |
| Applicable thickness | ≤2mm |
| Weld Requirements | ≤20% of plate thickness |
| Welding speed | 0~25mm/S |
| Fiber length | Standard length: 5m or custom lengths available |
| Operating Voltage | AC220V 50Hz |
| Cooling System | Air cooling |
Welding Advantages

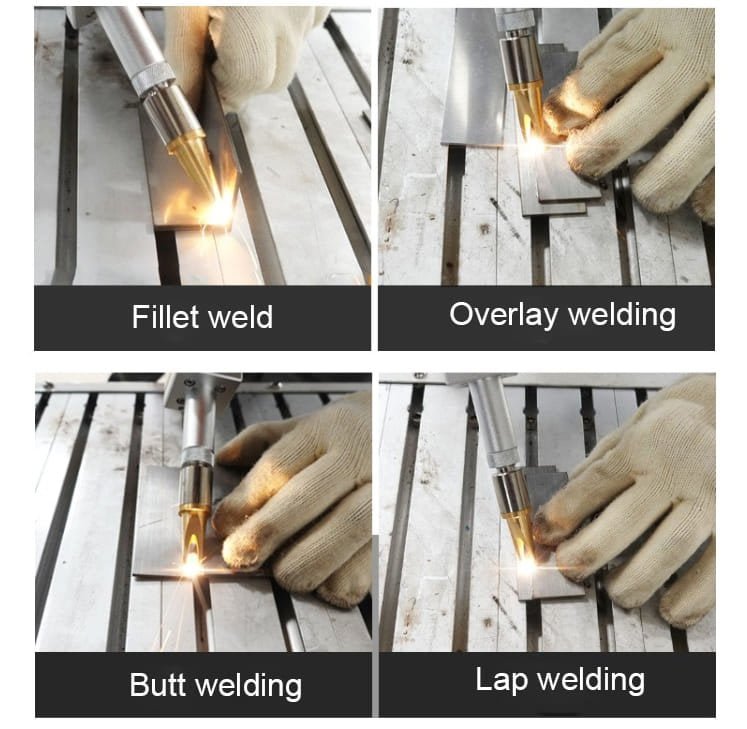

Easy to learn, easy to run—simple training gets you going. One-pass forming, no veteran needed to produce beautiful results. The Fixon handheld laser head is lightweight and agile, reaching any part of the workpiece for faster, safer, energy-saving, and eco-friendly welding.
Laser Welding Head
Fixon welding head with swing- weld mode. Adjustable spot width for high tolerance and forgiving operation-overcomes the narrow laser spot drawback, broadens part tolerance and seam width, and delivers cleaner seam formation. Quick-release lens design for easy maintenance. Dual protective lenses safeguard the focus lens for greater stability and reliability.
